제품 상세 정보:
|
| 상품 이름: | 15 khz 초음파 플라스틱 용접 기계 | 동작 주파수: | 15KHz/20KHz |
|---|---|---|---|
| 힘: | 2200W/1500W | 시간 형태: | 0.005-9.999 초 |
| 온도: | -10oC--40oC | 중량: | 258kg |
| 용접 지역: | 300mm까지 | 애프터 서비스는 제공되었습니다: | 영상 기술지원, 온라인 지원 |
| 하이 라이트: | 0 초음파 웰딩 프레스,2200W 초음파 웰딩 프레스,N95 면 마스크 초음파 용접기 |
||
15khz Ultrasonic Welding Machine for ABS PP Welding
15khz Ultrasonic Welding Machine without PLC touch screen, it an economical design. Compared with other welding techniques, ultrasonic welding has the advantages of excellent welding quality, high production efficiency, and wide application.
By using imported piezoelectric ceramics vibrators and original vertical normal temperature-circulation self-cooled ultrasonic generators, our products enjoy the lowest failure rate in the same industry.
Technical parameters:
| Product Name | 2200W Ultrasonic Welding Press |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 258KG |
| Operating frequencies* [kHz] | 15kHz |
| Welding head operating stroke [mm] | 300mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Power [W] | 2200W |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.005-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Working Temperature | -10ºC--40ºC |
Applications:
Plastic toys/plastic gifts/recording/video cassette and core/cello phone battery panel/switch socket/household plastic electronic appliances/anti-counterfeiting caps/folder slit and shell/cosmetic box shell/toothpaste tube seal/make-up mirror/vacuum cup/lighter/sauce sealed containers/battery/meter/reflector/car taillights/packing bags etc.

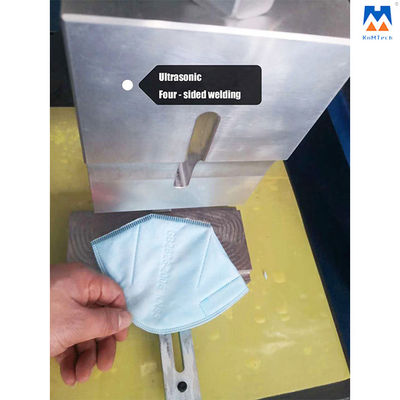

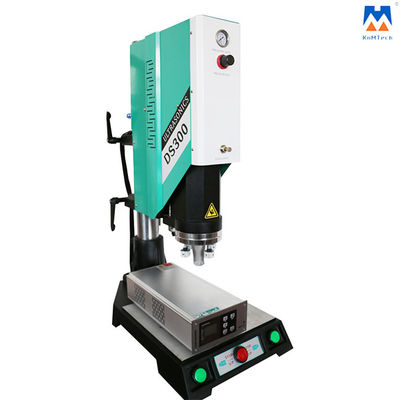

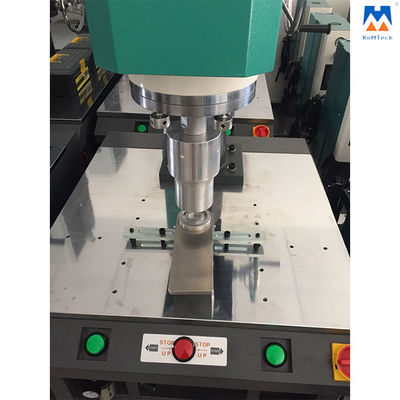

Detailed Photos:
Warehouse:
Packing:
