1:1.5 부스터 게인 노랑색 알루미늄 우라이타르소닉 변환기 초음파 부스터 35kHz명

What's the ultrasonic booster?

There are three types of ultrasonic boosters with different mounting systems:
1) standard mount;

2) rigid mount with square O-rings and removable clamp rings (which also is repairable);

3) solid mount that provides improved rigidity.

For continuous applications, solid mount ultrasonic boosters deliver more energy to the product, while in plunge applications, improved alignment is possible.

According to the type of vibration, it can be divided into longitudinal vibration, torsional vibration, bending vibration, and composite vibration (longitudinal bending, longitudinal torsion, bending torsion). In the processing and processing applications of power ultrasound, longitudinal vibration applications are most common.

The booster will have different diameters on either side of its center or nodal point. A smaller diameter at the end attached to the horns means that the boosters are for amplitude increasing. A bigger diameter at the end attached to the horn means the booster is for amplitude decreasing.

Technical parameters:

Features:

1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied

Booster gain:

1.0:1
1.5:1
1.75:1
2.0:1
2.5:1

3:1

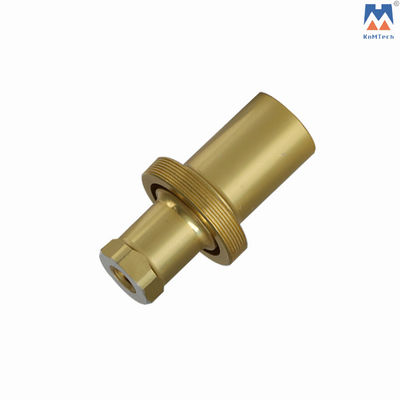

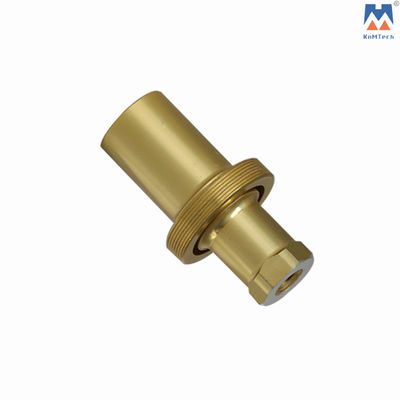

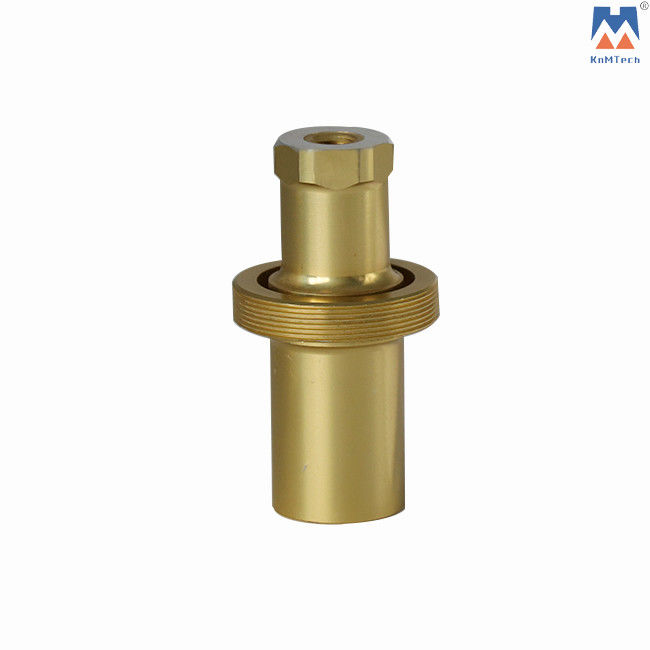

Detailed Photos:
