제품 상세 정보:
|
| porduct 이름: | 35kHz 초음파 용접 부스터 | 주파수: | 35KHz |
|---|---|---|---|
| 재료: | 티타늄 | 중량: | 2 킬로그램 |
| 전압: | AC 220V, 50/60Hz | 용법: | 초음파 용접 기계 |
| 하이 라이트: | Welding Transducer Ultrasonic Welding Booster,Titanium Material Ultrasonic Welding Booster,35kHz Welding Transducer Ultrasonic Booster |
||
35kHz Ultrasonic Welding Booster for Ultrasonic Welding Transducer
A booster is a one-half-wave length long resonant section made of aluminum or titanium. It modifies the amplitude of vibration generated by the converter applied to the horn. It is mounted between the converter and horn. To provide an amplitude change, the booster will have different diameters on either side of its center or nodal point.
A smaller diameter at the end attached to the horns means that the boosters are for amplitude increasing. A bigger diameter at the end attached to the horn means the booster is for amplitude decreasing.Clamped at their nodal point, the booster provides rigid support for the converter/horn assembly.
Technical parameters:
| Product Name: | 35kHz Ultrasonic Welding Booster |
| Frequency: | 35KHz |
| Material : | Titanium |
| Booster gain: | 1:2 |
| Screw size: | 2/1 |
| Usage | Ultrasonic Welding Machine |
Features:
1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available
4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied
Booster gain:
1.0:1
1.5:1
1.75:1
2.0:1
2.5:1
3:1

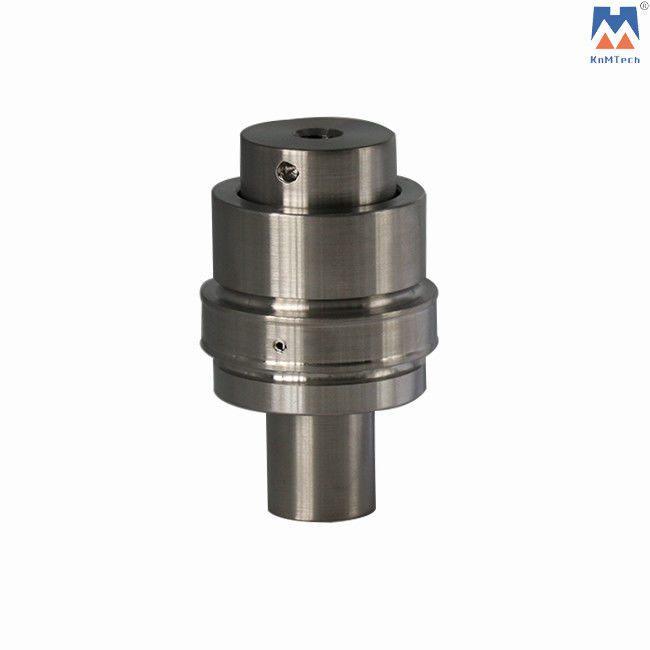

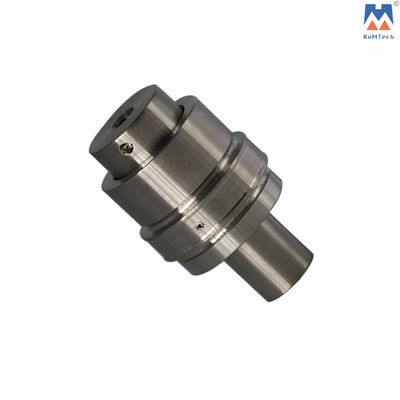

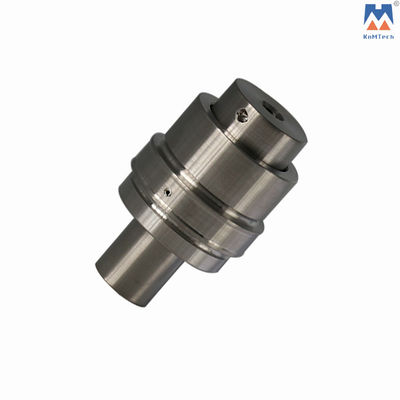

Detailed Photos:
